Turf: Parking for Vibrant Community


Neighborhood vibrancy depends on shopping activity and community engagement. Local businesses in Pittsburgh suffer from lower commercial patronage due to gentrification in other neighborhoods and less walkable streets in old areas. In order to help old neighborhood becomes vibrant, we want to attract more people to visit by connecting parking activity with local business. Since this is a 2-weeks project , we scope down our solution to focus on integrating a parking system to encourage users to engage in local neighborhood shopping for parking fee rebates. It also visualizes these purchases for the users as contributions to build a vibrant neighborhood. We also design for inclusivity so that people who don't own smartphones could still access to our service.


Pittsburgh Parking Authority

Project Duration



UI/UX design
UX research


Zahin Ali
Jeffrey Chou
Shengzhi Wu


How might we engage with and attract more people to participate in building vibrant neighborhoods?


From our research, we learned that:

Kiosks are inefficient and difficult to use

Users struggle to locate and use kiosks since the system is not intuitive enough to most citizens.

Park for Utilization

The goal of street parking fees is to maintain utilization. The goal in Pittsburgh is 85% occupancy.

Can’t see the impact of on-street parking

Street parking creates certain benefits to business district, but people is unaware of parking fees also go into city government for public service.

Increase Public Safety

On-street parking creates a safe barrier for pedestrians from traffic.


Primary Research

We applied five research methods in our primary research:Interview, expert interview, contextual inquiry, shadowing and an online survey. We conducted 30 people in both survey and interviews, and we found out three main pain-points from the residents in Pittsburgh. The pain-points are parking spots in downtown is hard to find, parking fare is expensive, and kiosk interface is confusing for elders. For applying both contextual inquiries and shadowing methods to parking issues, we observed how residents dealt with the problems and how frustrated they feel during the process.


As we were looking into some of the pain-points that we conducted in our interviews, we decided to move on for expert interviews. We talk to John Fournier, director at Parking & Metering in the City of Pittsburgh. He mentioned that parking fees are important for the city government since they are one of the main revenues for the city to maintain utilization and public service. But people are unware of the impact. He also said that street parking creates a safe barrier for pedestrians from traffic.

Territory Map

As we identified the problem that we wanted to address, we narrowed down to a group of stakeholders that will fit our concepts. We analyzed the directed and undirected stakeholders' pain-points and connected these dots together. We found that our interests land on local residents who drive and shop in the community.

User Journey

We also got insights on our user journey map and the persona we created. Our persona is Joe, a 28 years-old accountant living in the suburbs in Pittsburgh area. He needs to commute to Downtown Pittsburgh to work every day. He stressed about find parking spots on the street and anxious about getting tickets for not extending time. We analyzed the pain-points in relation to his key moments and how these factors affect his stress level during the process. From there, we found opportunities to design for interventions for these pain-points. It's essential for us to understand an emotional journey for the users to find opportunities in design.

Design Critera

Design Must

  • Embed parking into the local business ecosystem
  • Create participatory validation process for parkers/patrons of businesses
  • Streamline user experience for parking payments
  • Provide accessibility to different users including non-smartphone users and disability
  • Design Should

  • Provide visualization to understand contributions
  • Go beyond parking by providing other services (pay tickets, emergency, traffic information, call taxi, …)
  • Characterize local neighborhood block interrelationships
  • ________

    Journey Overview

    Design Process

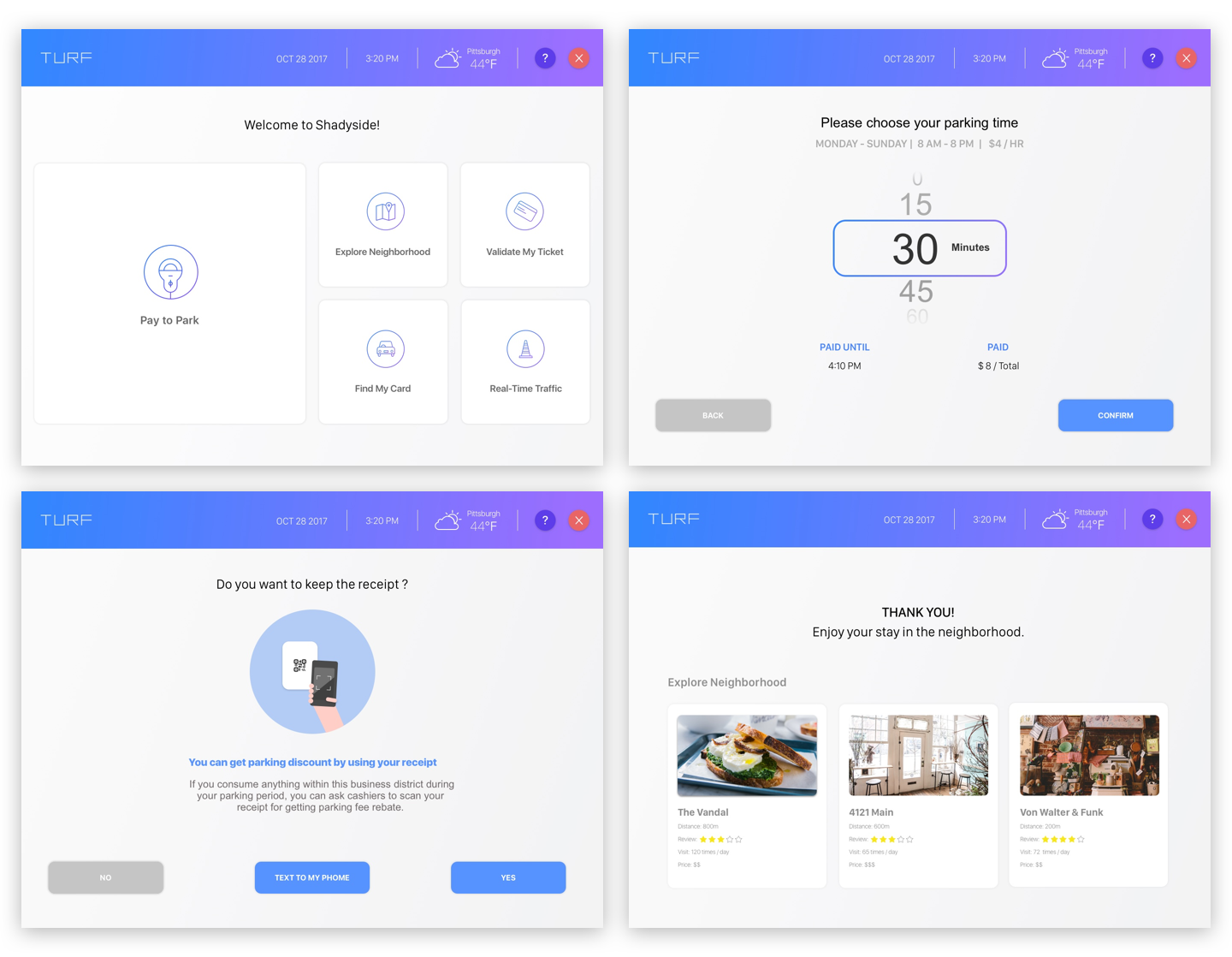

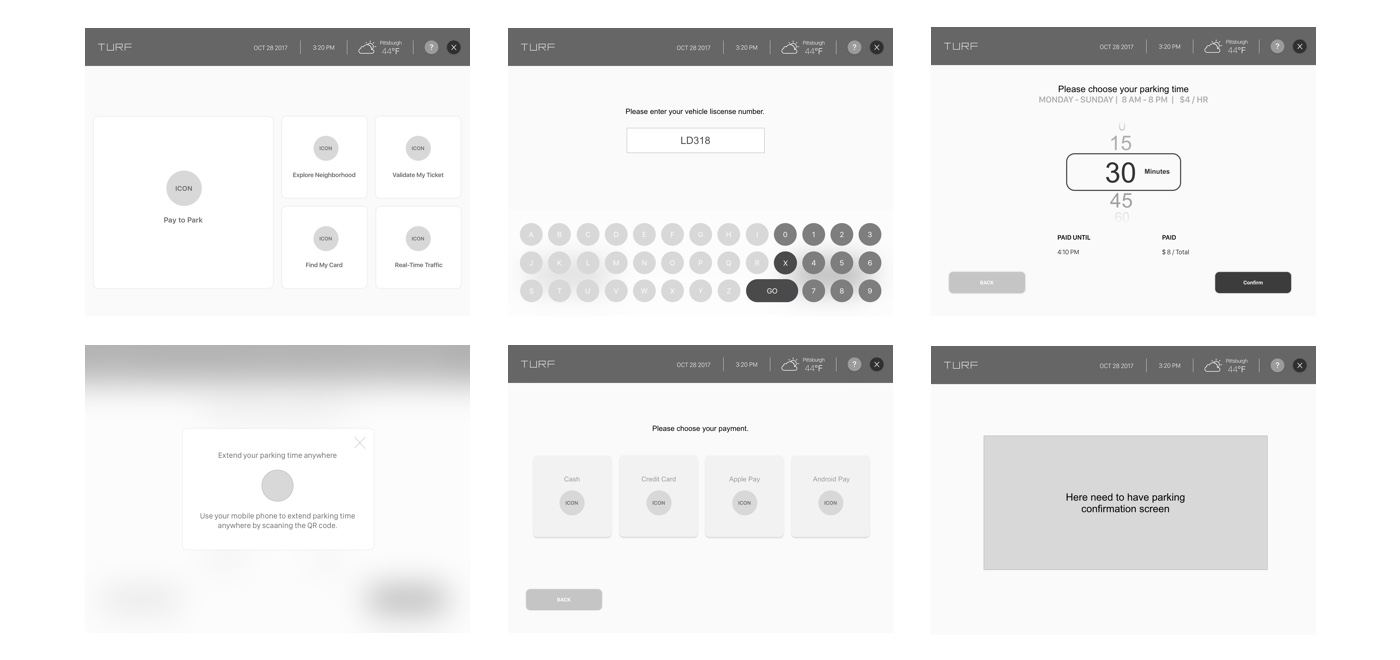

    Since we were designing for the future look of the kiosk and how the system interconnected with the local businesses and user contributions. Users will see a menu for five options (pay to park, explore the neighborhoods, find my car, validate my ticket and real-time traffic). The kiosk system also syncs with the mobile web version so users could extend parking time without downloading an app. We want to design an intuitive and smooth flow that would upgrade the current parking system in Pittsburgh. By integrating QR code to collect for rebating parking fees and visualization of contribution for public service, we encourage citizens to participate in making their community more vibrant in the future.

    User Flow

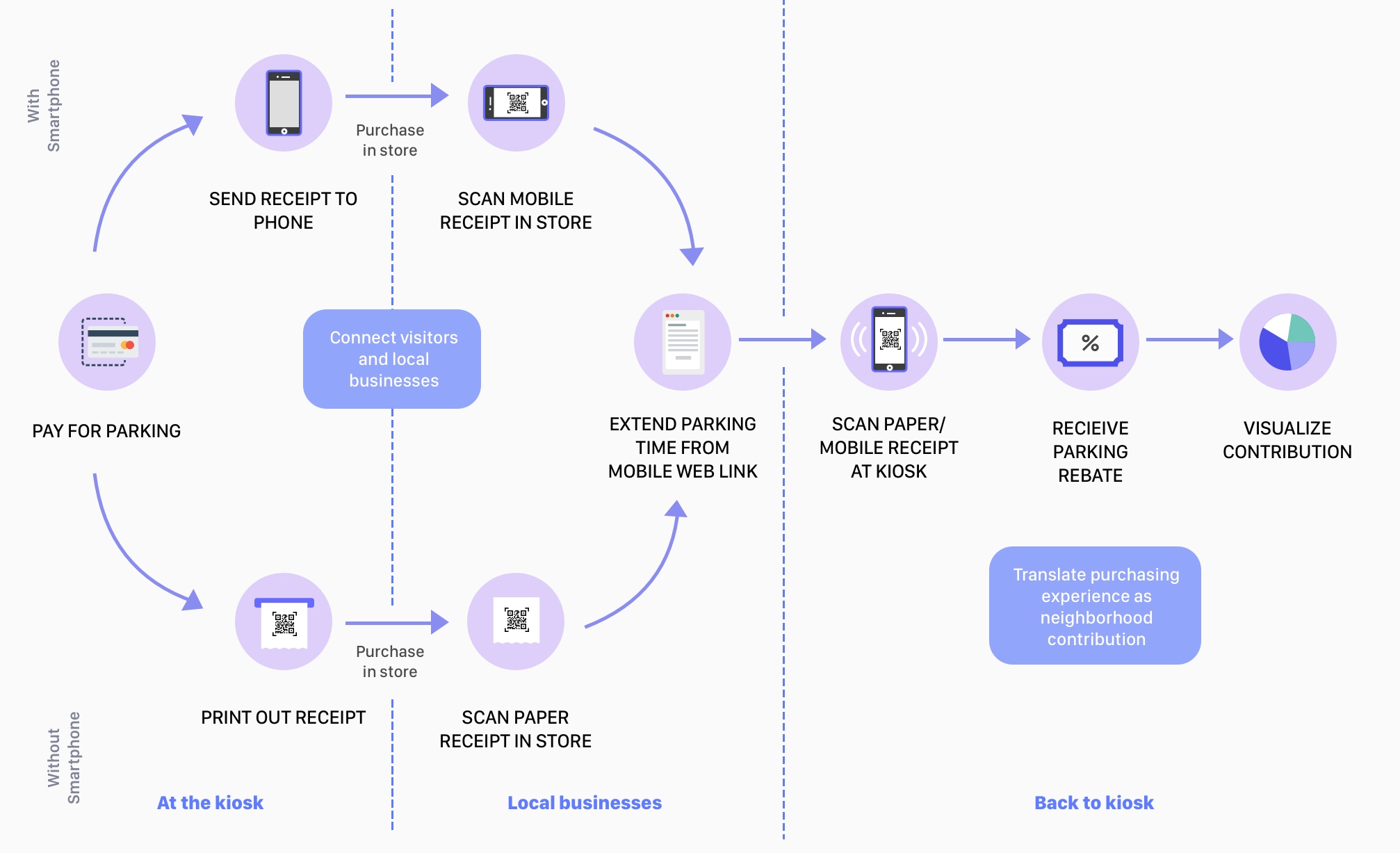

    The user, a driver, in this context, should quickly select parking time and go through the payment. Seamlessly send the receipt on the mobile phone and effortlessly extend time on the mobile without walking back to the parking spot. Also, by scanning QR code while shopping in the local businesses, will not only get discount from parking fee but also help the businesses to grow in the district. Lastly, by rebating user's parking fee, the user will visualize his contribution to the public service in the community. The interface of the parking kiosk and mobile web version have to be user-friendly and easy to understand so that the user will have a stress-free time when he is visiting the business district.


    Connecting parking system with local businesses to design for vibrant community

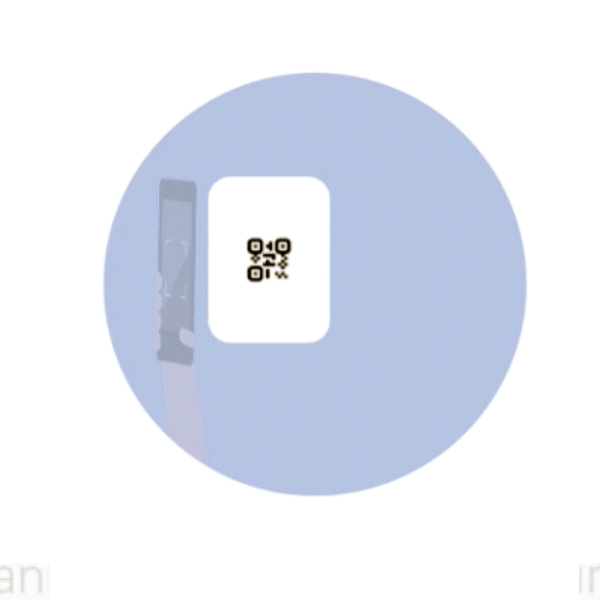

    Unlike the current parking kiosk, Turf extends the kiosk usage by adding features such as exploring neighborhoods, finding my car, notifying real-time traffic and validating my ticket. We leverage the QR code on parking receipt for parking time extension and collecting rebate for the parking fee.

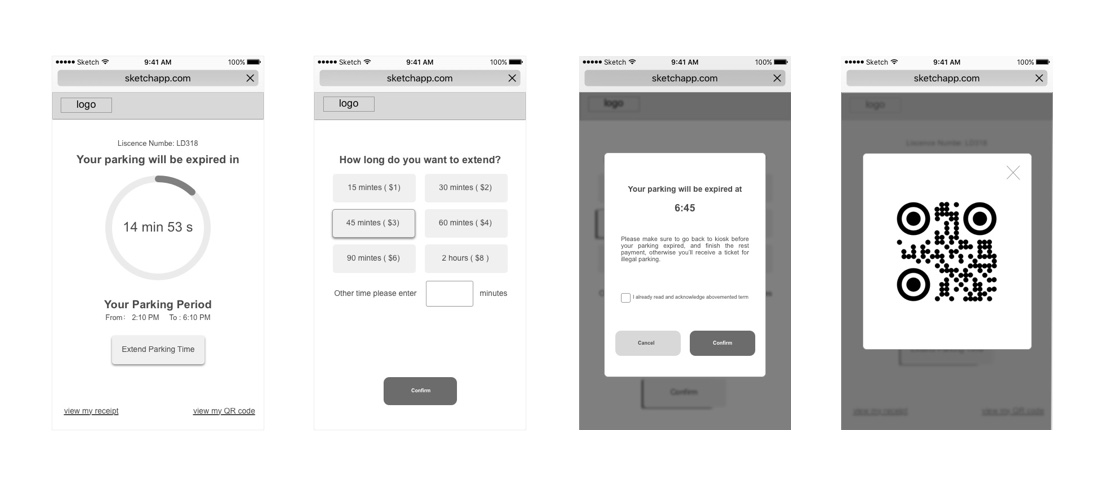

    Extending parking time becomes stressless with Turf mobile web version

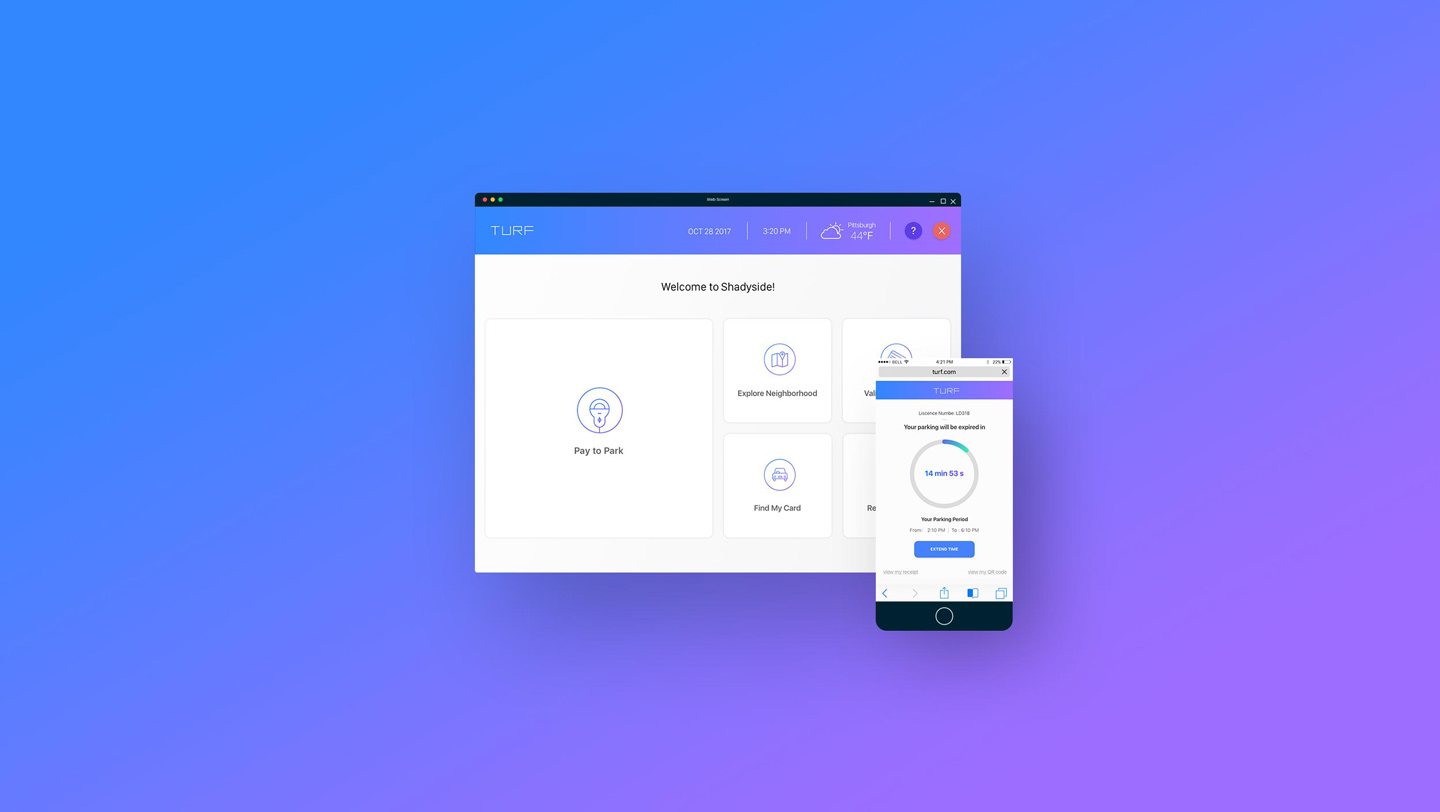

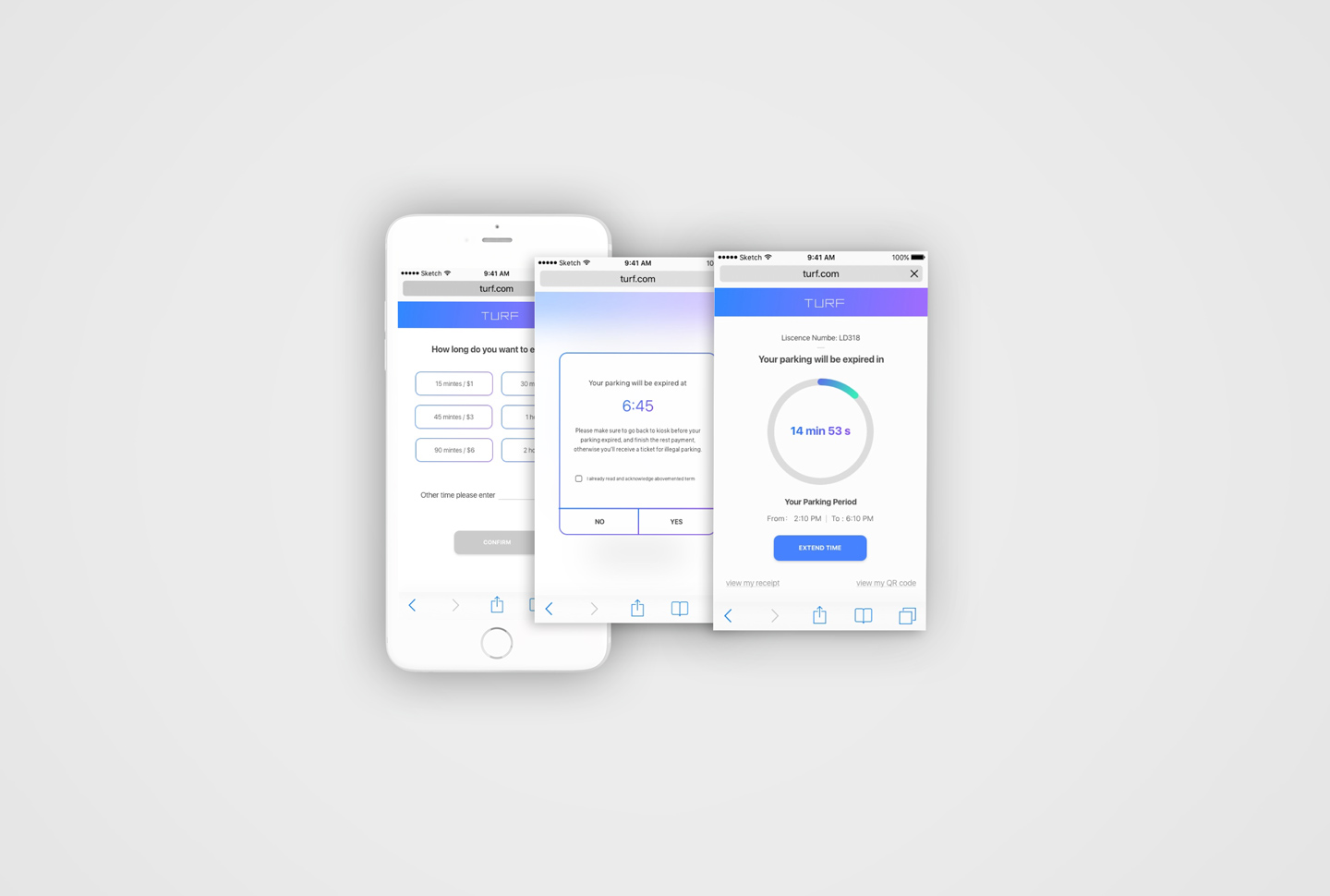

    By scanning QR code on the parking receipt, it will take users to the Turf web version on mobile devices. One of the pain-point for the visitors is that they do not want to download an app just for extending parking time. Turf mobile web version gives more flexibility for both local and visitors.

    Incorporate playful motion design to the future kiosk system

    We design fun motion design to provide explicit instruction when users are going through each step. We also design for inclusive that foreigners and less literate people could understand clearly as well.

    Bridge gaps between visitors and the community by designing visualization for citizens to understand their contribution to the public services.

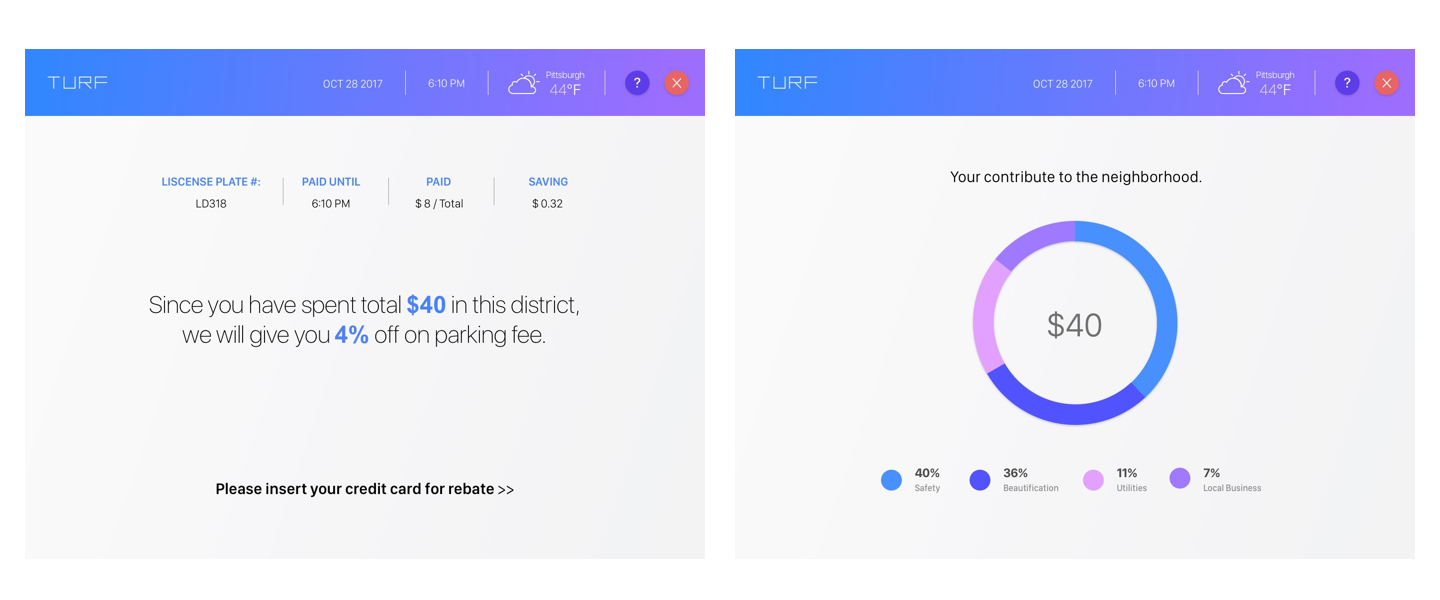

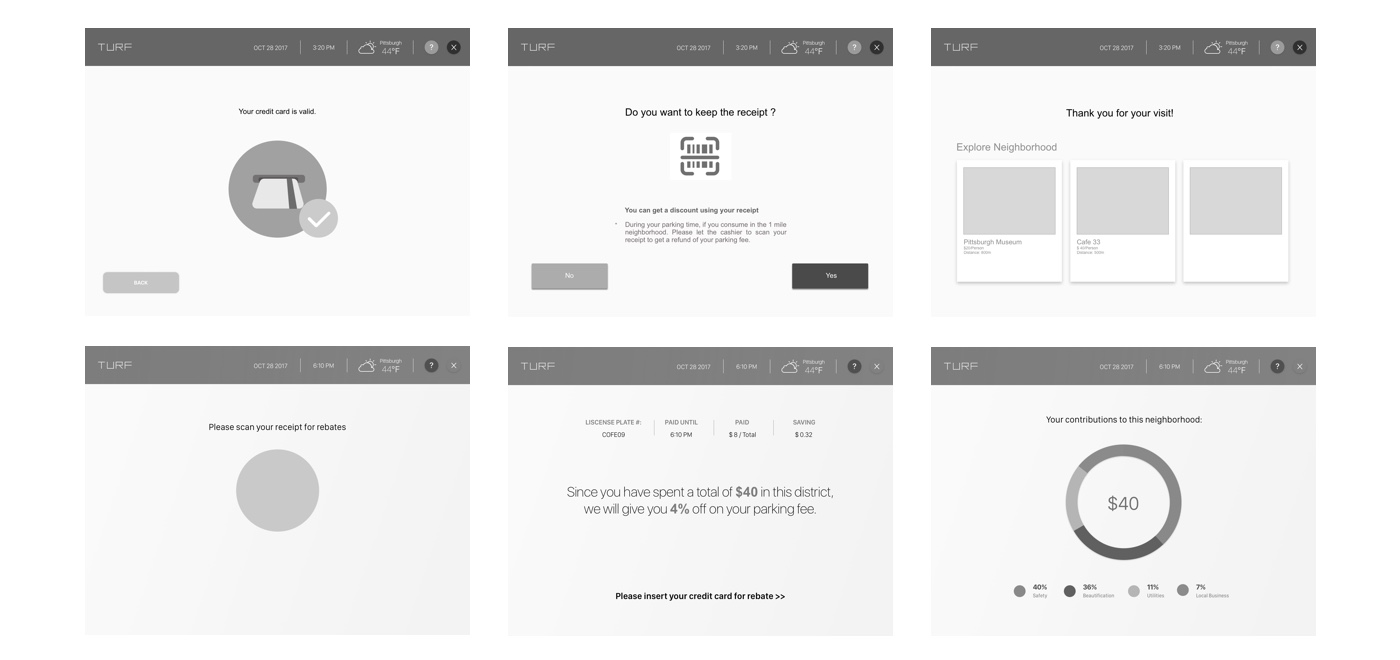

    We use incentive as a motivation for people to park and shop around in the local stores. As they rebate discount at the kiosk, our data visualization will show citizen's contribution to the public services. We hope to bring awareness to citizens that these fees go into refining a better community in return for citizen's contribution.

    Future kiosk design

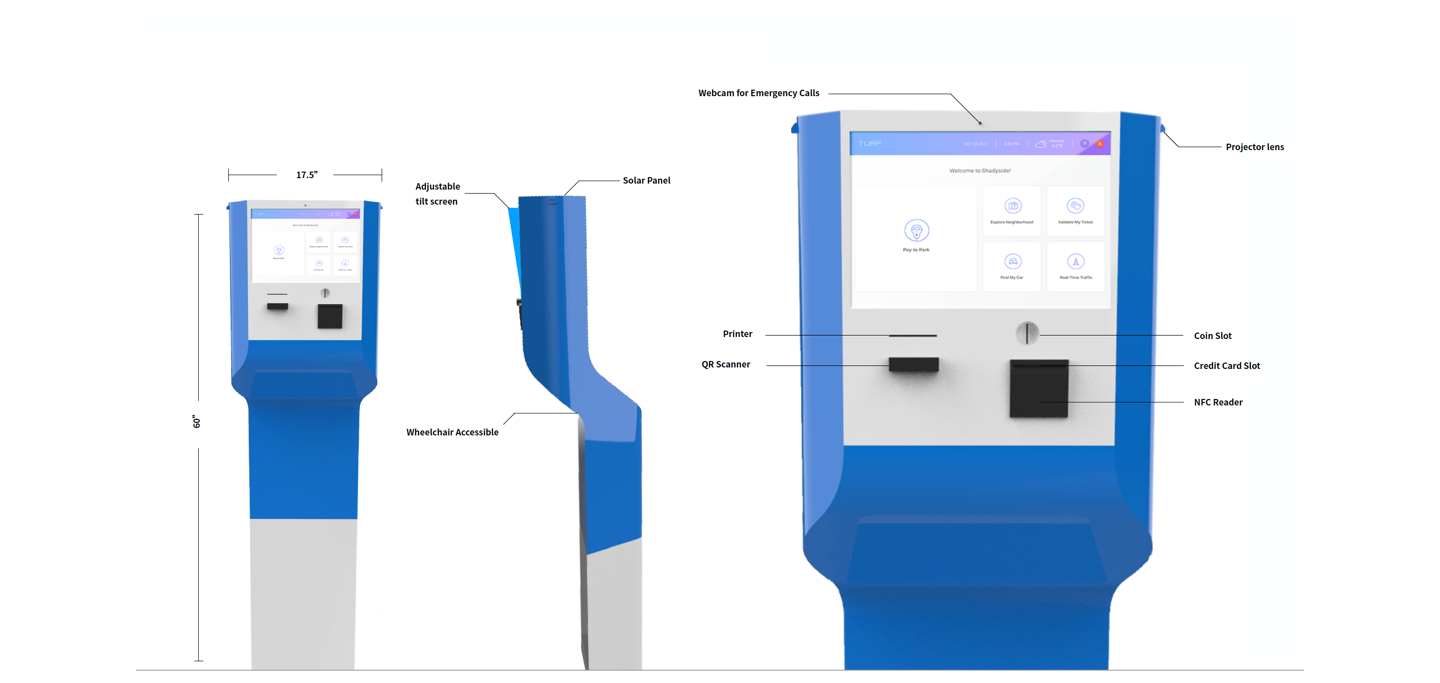

    We design a fresh and friendly look for the future kiosk. There are a QR code scanner and NFC reader for Apply Pay / Andriod Pay and touchscreen in color interface. We also integrate wheelchair assistance into our kiosk design for people in wheelchair quickly access to the touchscreen.
